Feeding external LTC Timecode into a Lockit

Lockits usually act as master source for timecode and genlock and provide timecode for other audio and video devices. However there also are a few use-cases where a Lockit needs to be supplied with LTC timecode from another source.

The most important scenarios are virtual production environments or Rec Run setups where a Lockit in TX mode broadcasts the timecode (and according sync) information from a studio clock or audio/video recorder to other Lockits via ACN.

To make it easier for you to choose the right cable for feeding timecode into a Lockit, we have collected the most common LTC output types that exist on third-party devices and listed the right cables for the job below:

BNC (e.g. professional cameras, studio clocks)

XLR (e.g. studio clocks, DAW interfaces)

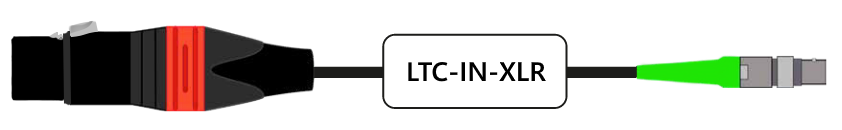

LTC-IN-XLR

LTC-IN-XLR

Buy Now

Standard 5-Pin (e.g. professional cameras and audio recorders)

TC-IO

Buy Now

DIN 1.0/2.3 (some Canon EOS cameras)

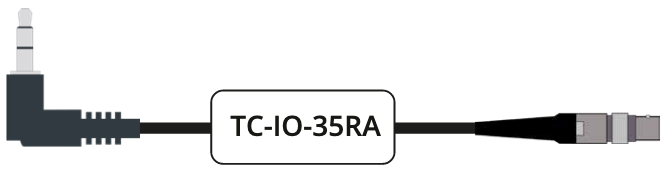

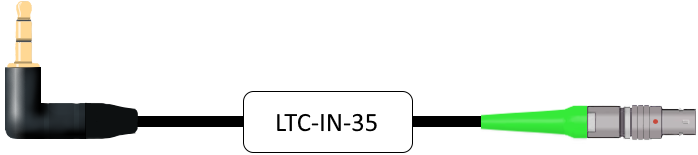

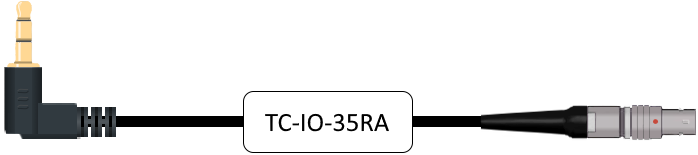

3.5mm TRS Jack (e.g. pocket recorders, consumer recording equipment)
