Please Note: This mode of operation works only from firmware 7.01 - please update your Lockits via the LockitToolBox (see https://ambient.de/downloads )

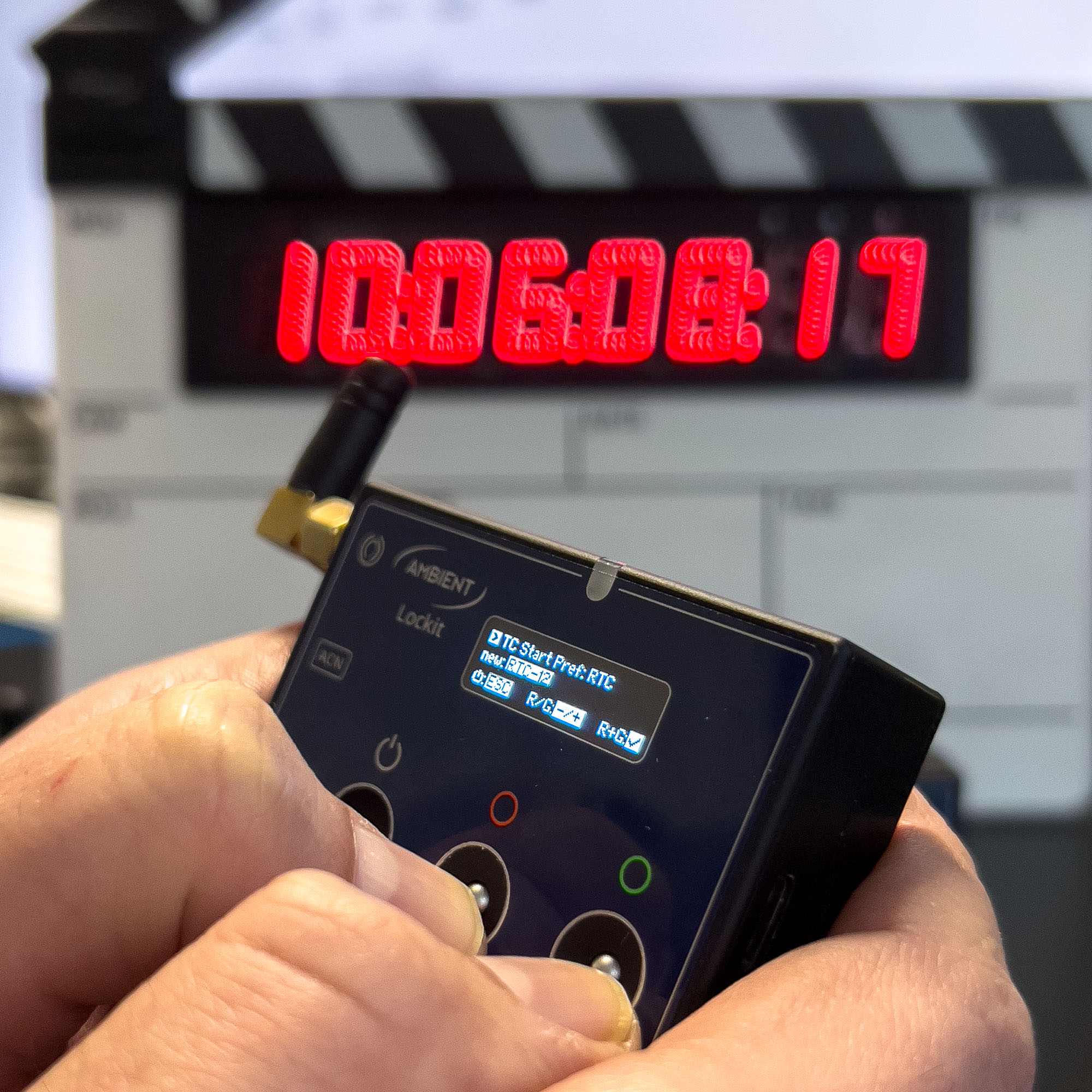

While the unit is running you can access the menu by tapping ○ Red & ○ Green simultaneously.
The menu is structured like a list. Via ○ Red (down) or ○ Green (up) you can navigate to the desired menu item and select it (by tapping ○ Red & ○ Green simultaneously).
Now tap ○ Red to decrease or ○ Green to increase a parameter value. Tap ○ Red & ○ Green simultaneously to confirm and proceed. Tap Power to cancel or to leave the menu.
Applied settings will be persistent over a reboot until reset or changed. The workflow also applies to the Lockit, LockitSlate Take 2 and Lockit+
Graphical Menu Options Lockit
- Project Rate: 23.98 / 24 / 25 / 29.97 / 29.97 DROP / 30 / 47.95 / 48 / 50 / 59.94 / 59.94 DROP / 60 FPS
- Sync Output: off / P / PsF / i / 48 kHz / 96 kHz / 192 kHz
- ACN Channel: 11 – 26 / off
- TC Start Preference: RTC / RTC-12 / zero / one / manual
- LED Brightness: 1 – 10
- TC Out Level: -68 / -58 / -50 / -6 / 0 / +6 dB
- Auto Power
Graphical Menu Options LockitSlate Take 2
- Project Rate: 23.98 / 24 / 25 / 29.97 / 29.97 DROP / 30 / 47.95 / 48 / 50 / 59.94 / 59.94 DROP / 60 FPS
- ACN Channel: 11 – 26 / off
- TC Start Preference: zero / one / manual
- Show Userbits (UB) on Clap: off / 1s auto / 1s – 20s
- Show Clapped TC: off / 1s – 20s
- Show Running TC: off / 1s – 20s / infinite
- LED Brightness: 1 – 15
- Auto Power
Graphical Menu Options Lockit+ / LockitPlus
(more features available in the Web Interface accessible via WiFi)
- Project Rate: 23.98 / 24 / 25 / 29.97 / 29.97 DROP / 30 / 47.95 / 48 / 50 / 59.94 / 59.94 DROP / 60 FPS
- Sync Output: off / P / PsF / i / 48 kHz / 96 kHz / 192 kHz
- ACN Channel: 11 – 26 / off
- TC Start Preference: RTC / RTC-12 / zero / one / manual
- LED Brightness: 1 – 10
