Ideally you still have the sticker near the bottom of your pole to tell you which version you exactly have.
Lost it? No problem: Aside from obvious things like segment count and length, the different QuickPole lines visually mostly vary in the tip ring color and the shape and surface of the locking nuts. Check the pictures below to quickly identify which series your QuickPole belongs to and find the exact model by comparing the lenght to the table on the right:
|
|
|
|

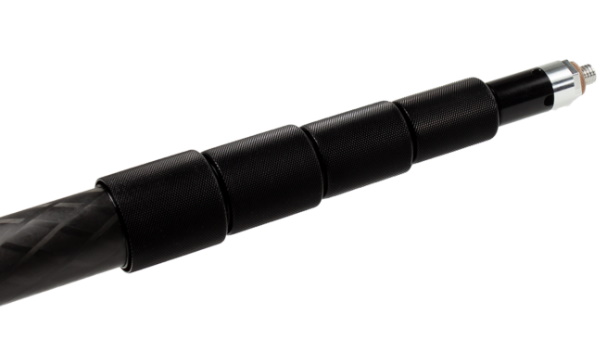

Large solid black tip ring.
Large nuts with fine-gritted knurling.
5 segments.
|
| Model |
Collapsed length mm (ft) |
| QP550 |
550 (1’ 9") |
| QP565 |
690 (2’ 3") |
| QP580 |
840 (2′ 9") |
| QP5100 |
1040 (3’ 5") |
| QP5130 |
1340 (4’ 5") |
| QP5150 |
1550 (5’ 1") |
|
|
|
|

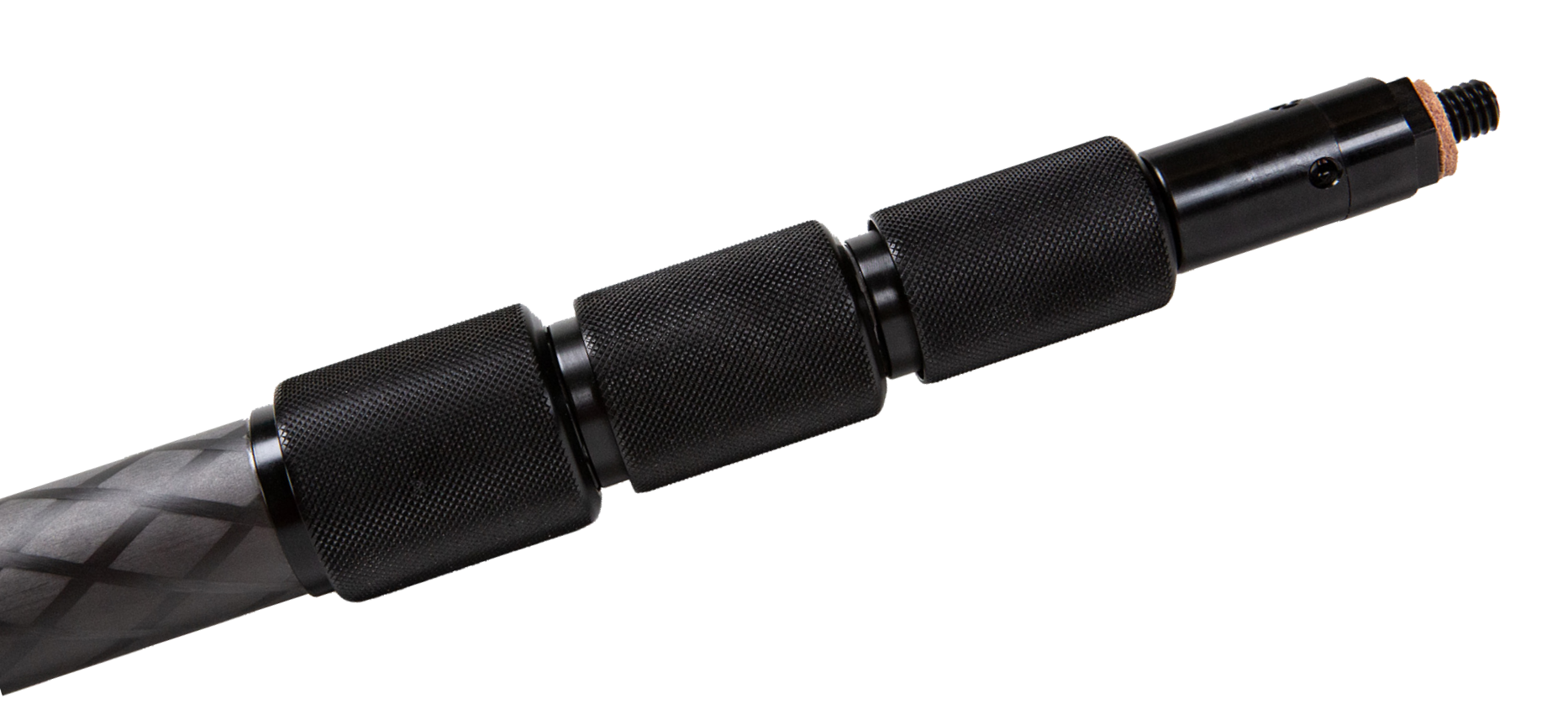

Large solid black tip ring and black tip.
Large nuts with fine-gritted knurling.
4 segments.
|
| Model |
Collapsed length mm (ft) |
| QP Slim Long |
1550 (5.09ft) |
| QP Slim Short |
1000 (3.28ft) |
|
- Series 4 QP (discontinued)
|
|
|
Purple tip ring.
Medium-sized nuts with grooved knurling and 4 rings.
4 segments. (5 with QP 120 extension)
|
| Model |
Collapsed length mm (ft) |
| QP 4140 |
1540 (5.05ft) |
| QP 480 |
1050 (3.44ft) |
|
- Series 4 QS (discontinued)
|
|
|
Black tip ring.
Large nuts with fine knurling and 5 rings.
4 segments. (5 with QP 120 extension)
|
| Model |
Collapsed length mm (ft) |
| QS |
1540 (5.05ft) |
| QSM |
1050 (3.44ft) |
|
|
|
|

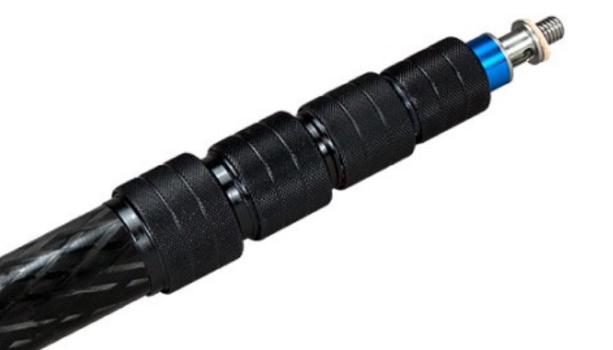

Blue tip ring.
Small nuts with fine-gritted knurling and 3 rings.
5 segments.
|
| Model |
Collapsed length mm (ft) |
| QXS 550 |
500 (1.64ft) |
| QXS 565 |
650 (2.13ft) |
| QXS 580 |
800 (2.62ft) |
| QXS 5100 |
1000 (3.28ft) |
| QXS 5130 |
1300 (4.27ft) |
|
|
|
|

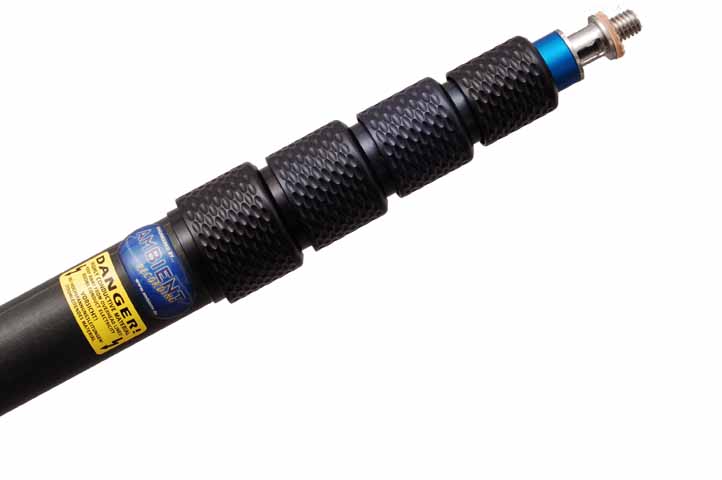

Blue ring.
Small nuts with coarsly dimpled knurling.
5 segments.
|
| Model |
Collapsed length mm (ft) |
| QX 550 |
500 (1.64ft) |
| QX 565 |
650 (2.13ft) |
| QX 580 |
800 (2.62ft) |
| QX 5100 |
1000 (3.28ft) |
| QX 5130 |
1300 (4.27ft) |
|
|
|
|

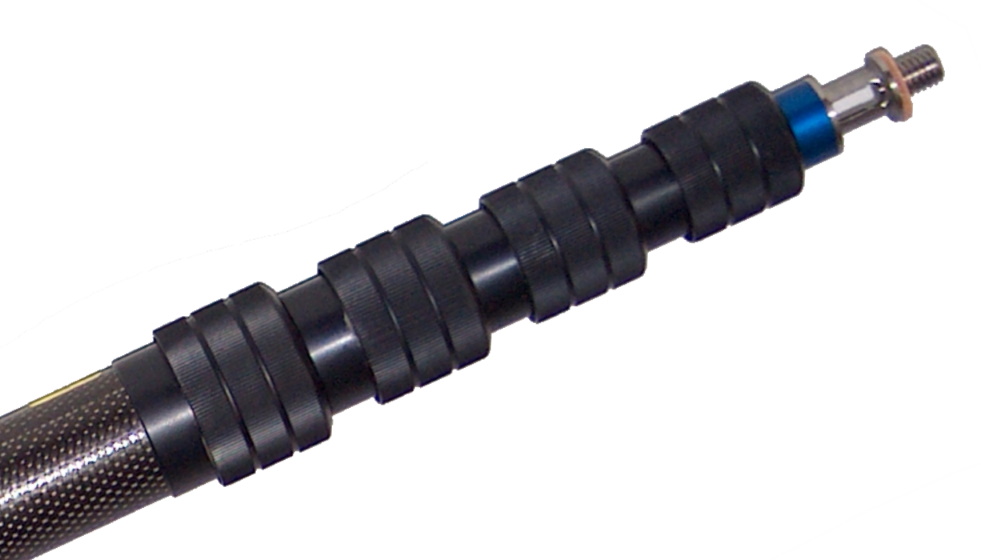

Blue tip ring.
Small nuts with grooved knurling and 3 rings.
5 segments. Very distinct snake-skin-like carbon surface.
|
| Model |
Collapsed length mm (ft) |
| QL 550 |
530 (1.74ft) |
| QL 560 |
630 (2.07ft) |
| QL 570 |
740 (2.43ft) |
| QL 580 |
840 (2.76ft) |
| QL 5100 |
1050 (3.45ft) |
| QL 5150 |
1530 (5.02ft) |
|
