In this guide we’ll show how to make a Zaxcom Nomad accept external Timecode.

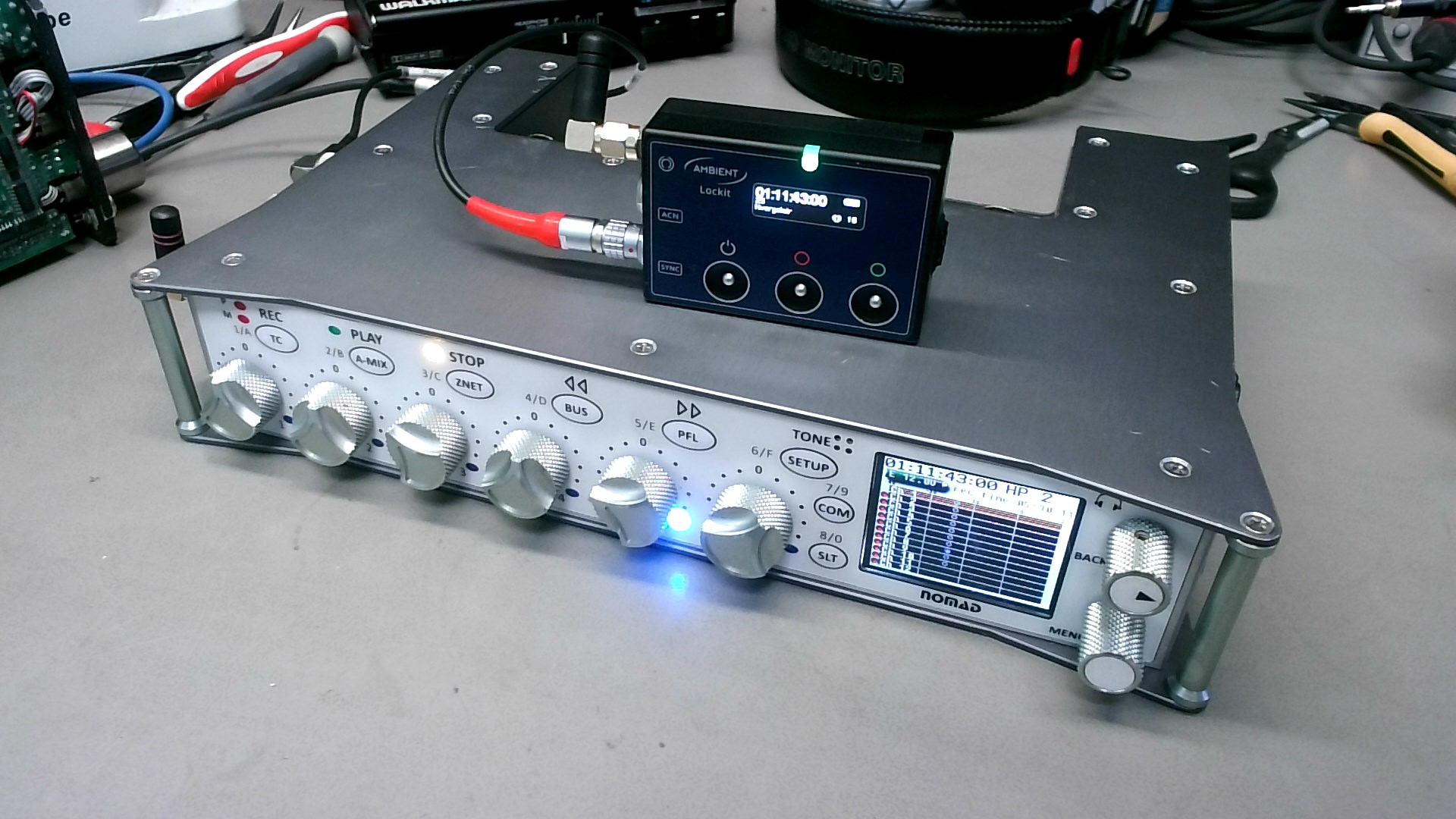

Turn on all your Lockit devices, choose one of them to be the Master Clock – then press-and-hold the green button to broadcast timecode and frame rate through ACN and you are set.
Make sure all devices and Lockits run on the same frame rate.
- On the Lockit, press green and red simultaneously to enter menu, then and navigate to “Project Rate”. The NanoLockit frame rate can be adjusted in the LockitToolbox.

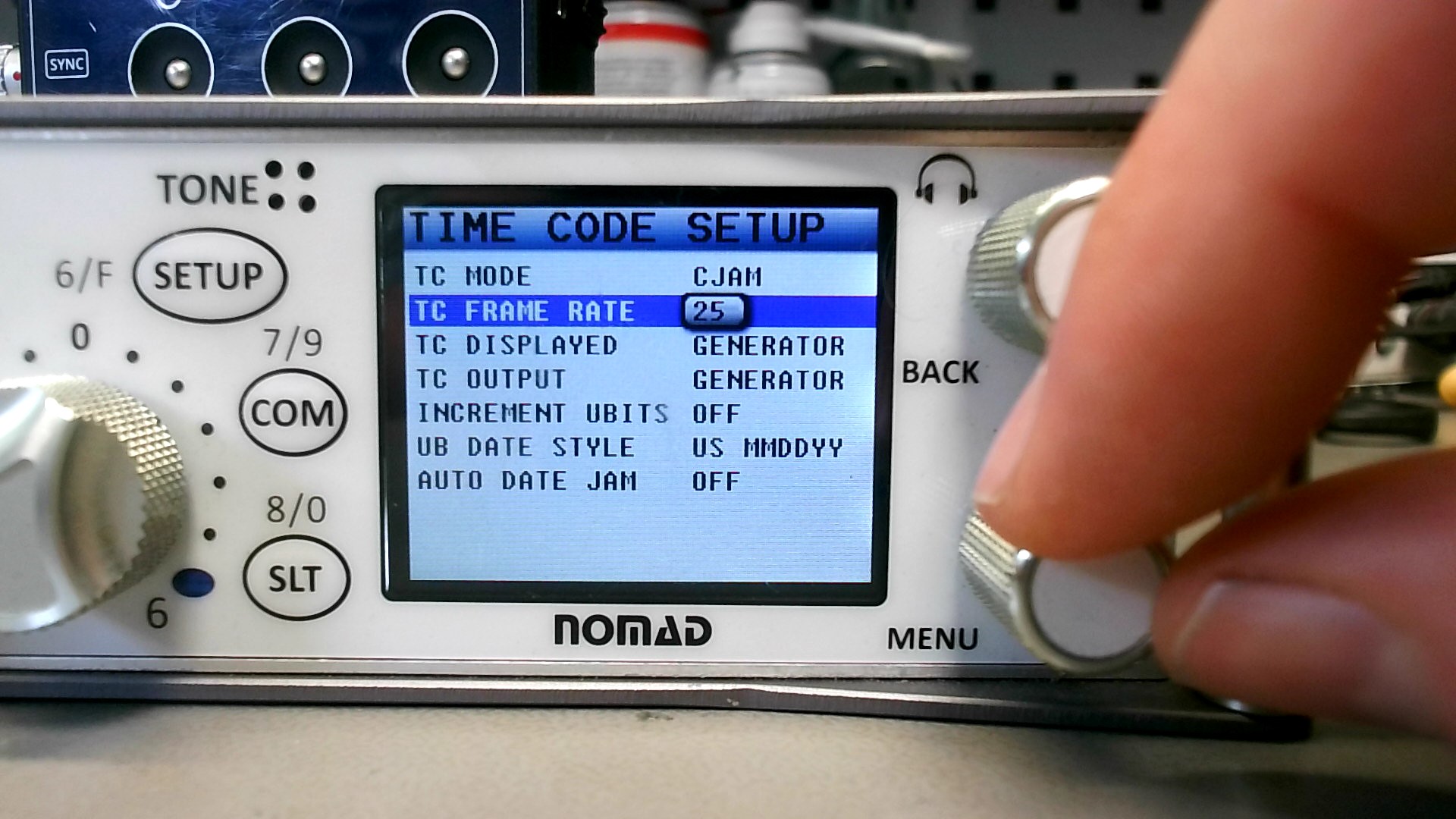

- On the Nomad, press the TC button four times to enter the "Timecode Setup Menu" and select your "TC Frame Rate".
How to make the Nomad accept external Timecode:

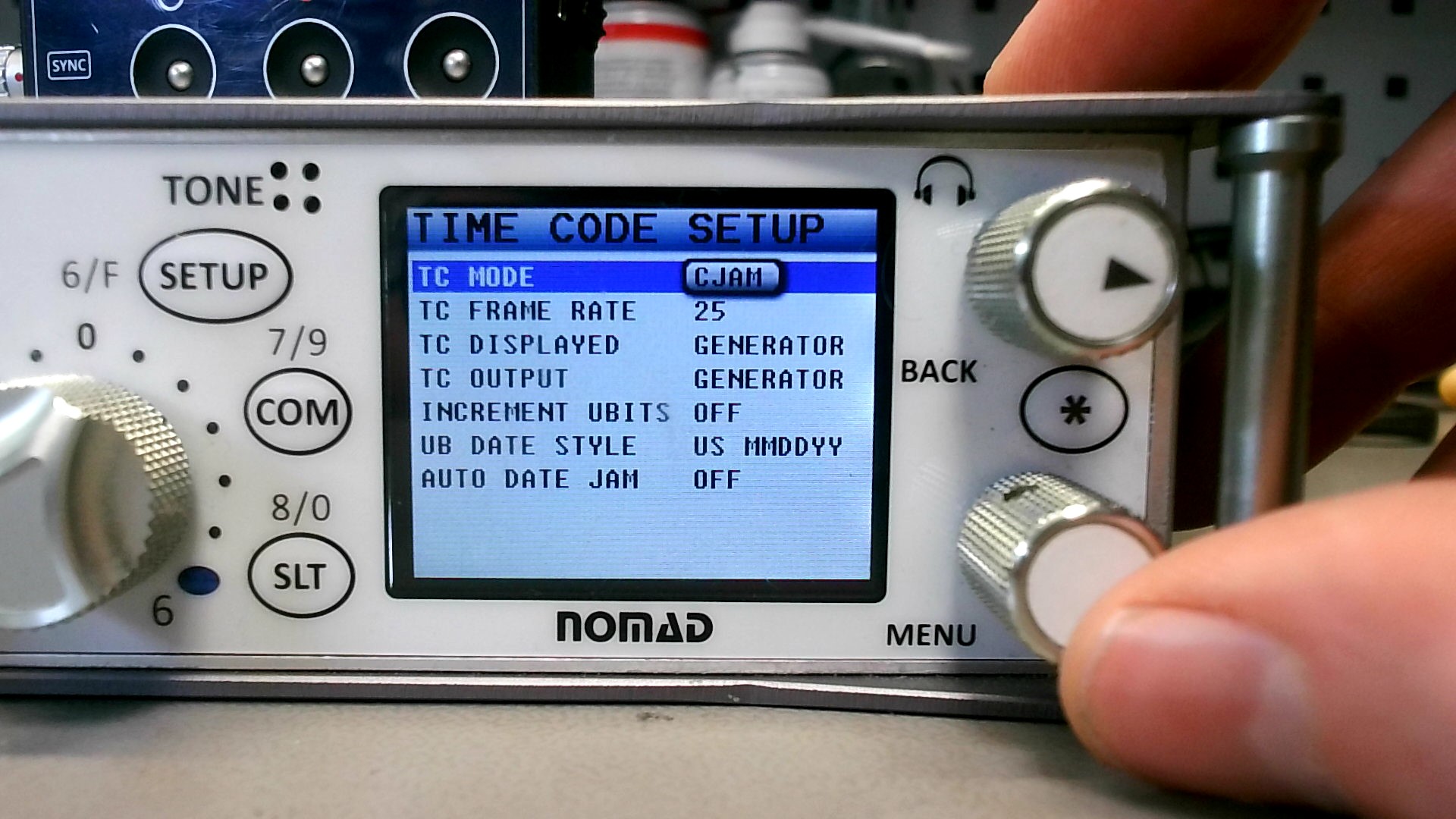

- Also in the Timecode Setup Menu, Select "TC MODE"
- Choose "CJAM" or "CJAM TC"

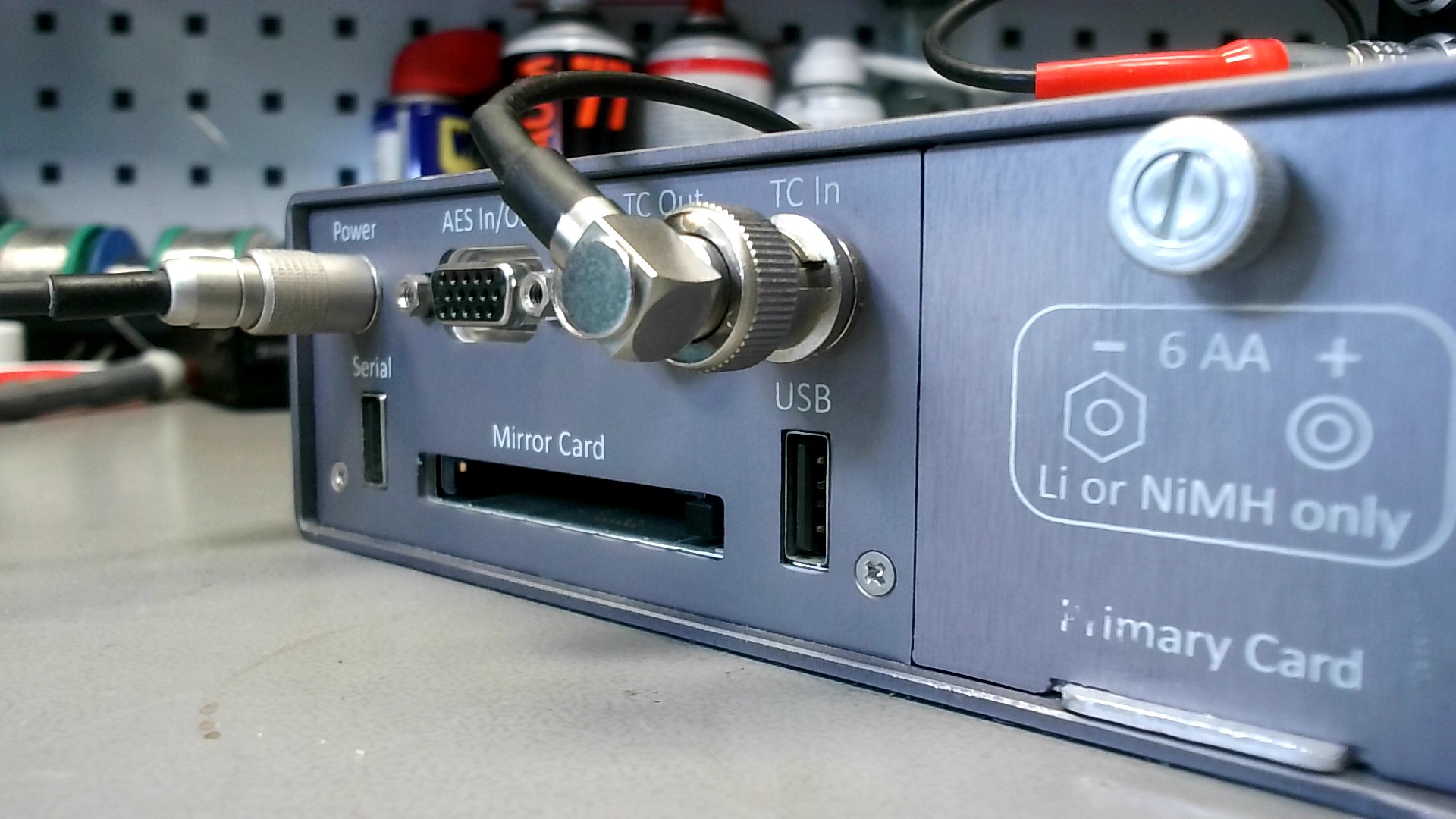

For the Zaxcom Nomad you need an LTC-OUT cable.
Connect it to the TC In connector on the left side panel.

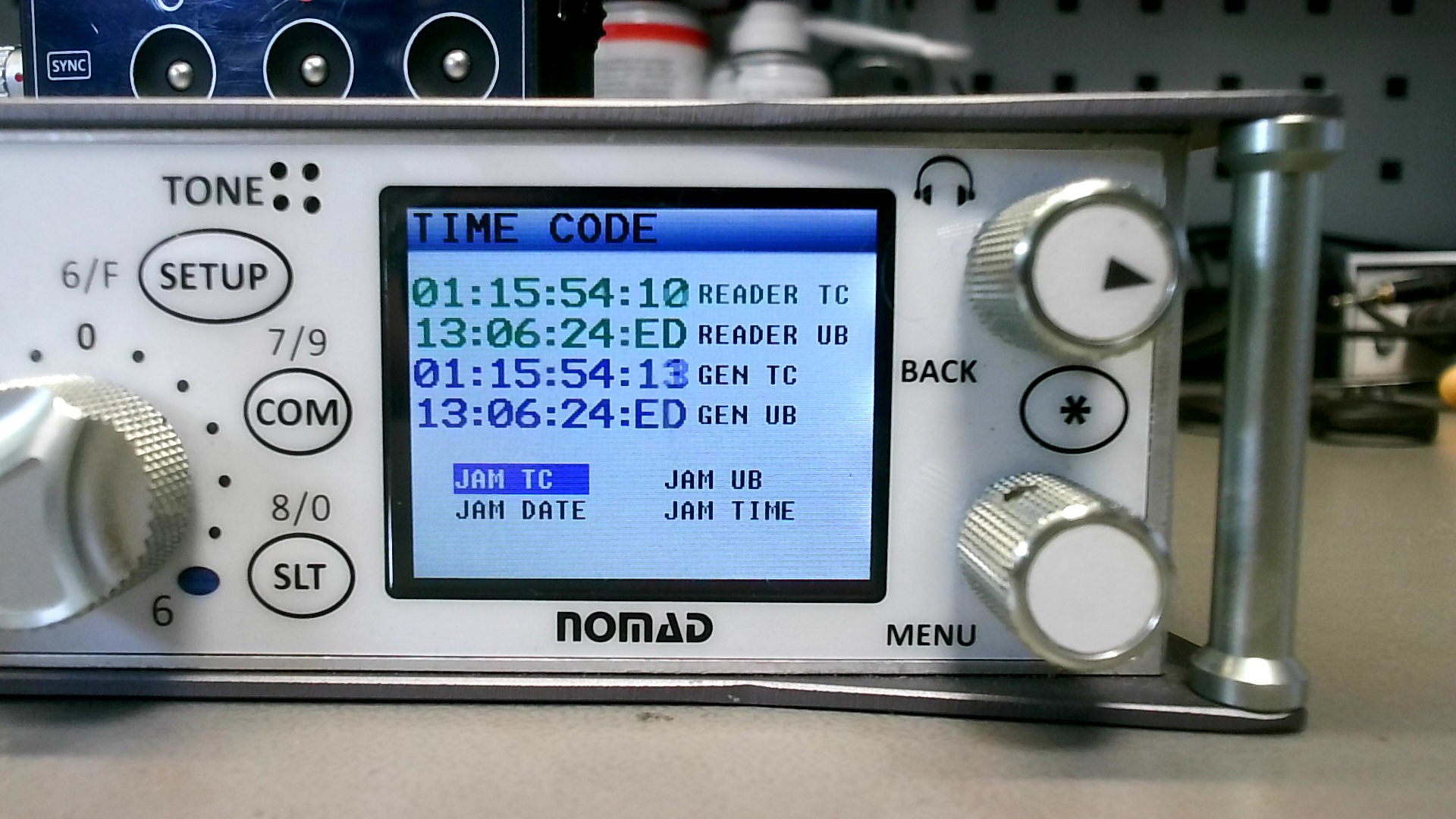

Now the Nomad accepts the external timecode source. You can press the TC button a few times to toggle to the Timecode Jam screen where you can monitor the Lockit timecode ("Reader TC")
