In this guide we’ll show how to make a Sony FX9 accept external Timecode and Genlock.
Turn on all your Lockit devices, choose one of them to be the Master Clock – then press-and-hold the green button to broadcast timecode and frame rate through ACN and you are set.
Make sure all cameras and Lockits run on the same frame rate.
- On the Lockit, press green and red simultaneously to enter menu, then and navigate to “Project Rate”
- On the camera:

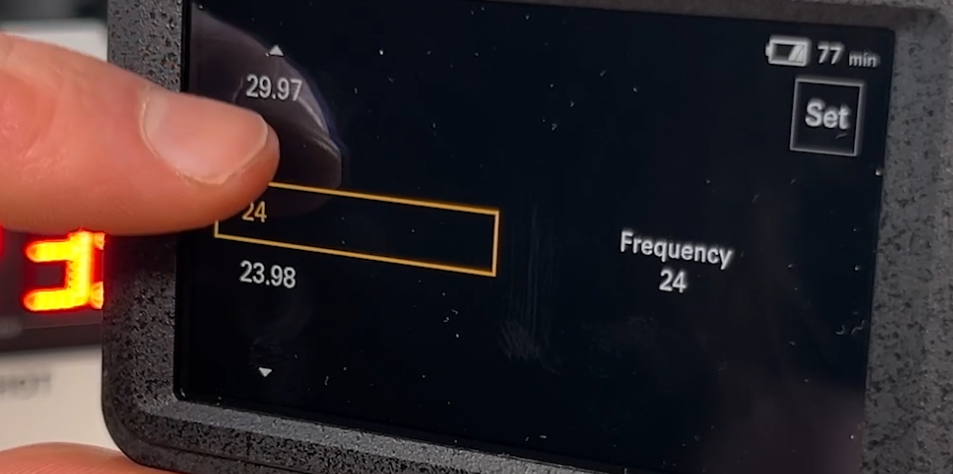

- Enter (Regular) Menu (Short-Press Menu Button)
- Go to “Frequency/Scan”
- Adjust Frame Rate (Left column)
How to make the camera accept external Timecode:

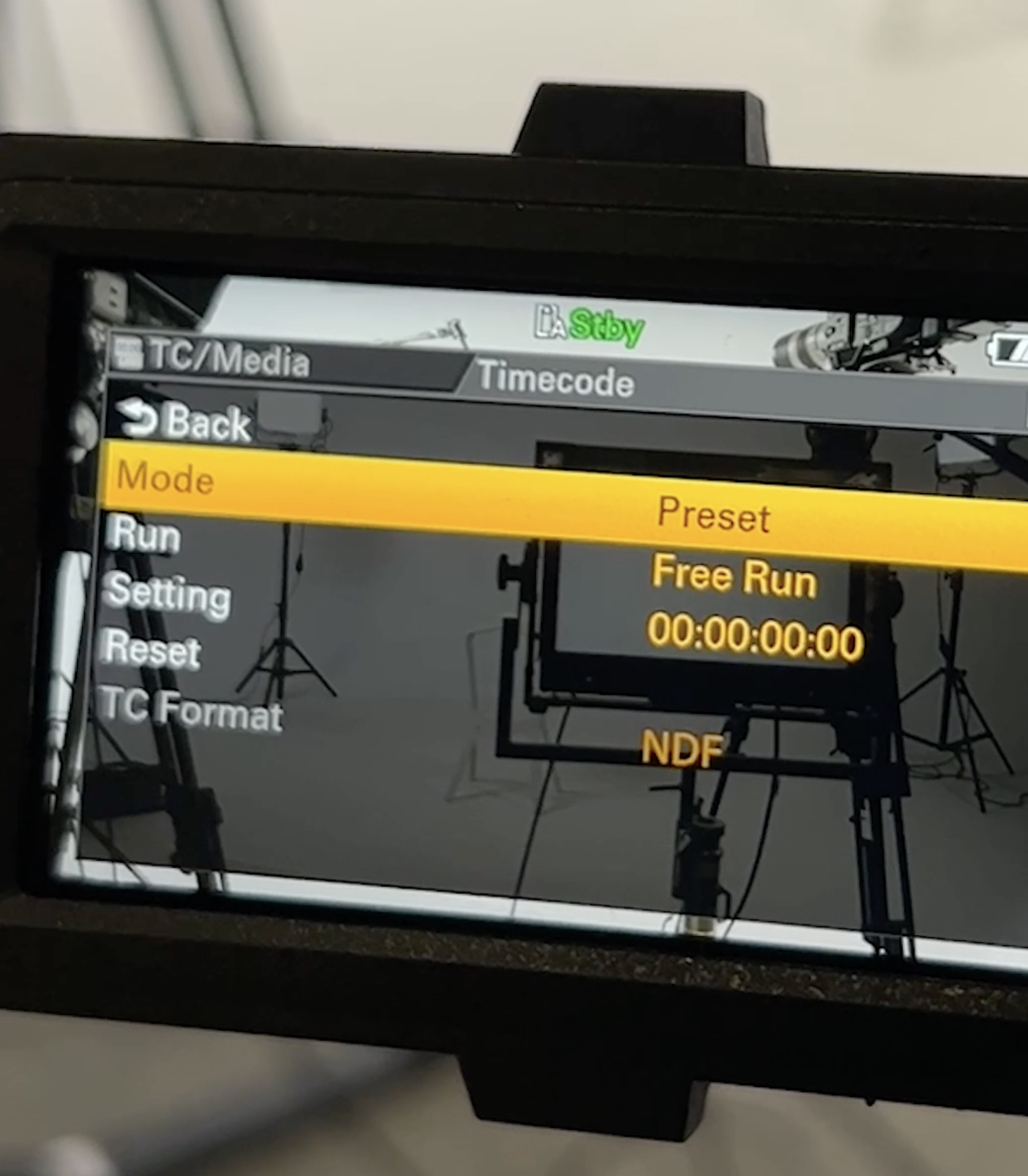

- Enter advanced Menu by holding the Menu button
- Go to “TC/Media”
- Go to “Timecode”
- As “Mode” select “Preset”
- As “Run” select “Free run”

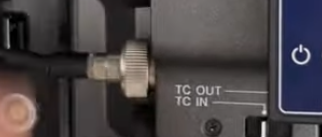

Move the switch next to the camera’s timecode interface to "In" – as you want to feed in timecode.
For this camera you need an LTC-OUT timceode cable.
Connect it to the BNC Timecode Connector

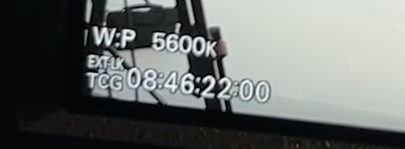

Now the camera accepts the external Timecode source – indicated by the “Ext Link” sign next to the Timecode.
How to set up Genlock:
- In the Lockit Menu set to Sync output to a matching format. Keep in mind that the FX9 expects an interlaced Trilevel signal in most cases even when you are shooting with a progressive rate. 1080PsF will do the trick for single rates.
- Make sure the TC/Genlock In/Out switch on the camera is set to in.
For the genlock sync you need an extra cable - the SYNC-OUT
Connect it to the BNC Genlock / Sync Connector.
Now the camera accepts the external Genlock Signal.
Too see how this works in Action watch our Tutorial video: https://youtube.com/shorts/zrtbhJa2lbI
