You can refer to this table to find out whether a specific handheld/microphone combination will work with one of our adapters.
Note that not all possible combinations are listed here because it is literally impossible for us to keep track of every single transmitter or capsule that is released to the market.
In general you can expect any mechanically compatible combination to work. There are only very few specific matches that do not work, e.g. you can't drive a KK204 capsule on a Shure UR2 because of the high current demand, but it will work on a ADX2 on the other hand.
If you are in doubt if your desired match does work, feel free to contact us for further information.
Cross-Reference Table Microphone Heads/ Adapters/ Wireless Systems |
Microphone Heads | HHA-SHS | Handheld Transmitter | ||
Shure comp. | Sennheiser SK2000 comp. | |||
Shure® | Beta58A | Sennheiser® | SKM2000 | |
Beta87A | SKM100 G3/G4 | |||
Beta87C | SKM300 G3/G4 | |||
KSM8 | SKM500 G3/G4 | |||
KSM9 | SKM6000 | |||
KSM9HS | SKM9000 | |||
PG58 | SKM(-S) D1 | |||
SM58 | EW-D SKM-S | |||
SM86 | EW-DX SKM-S | |||
SM87A | ||||
VP68 | ||||
Austrian Audio | OD505WL1 | |||
OC707WL1 | ||||
Electro-Voice® | RC2-767 | |||
RC2-967 | ||||
RC2-PL80a | ||||
RC2-410 | ||||
RC2-510 | ||||
RE420-RC3 | ||||
RE520-RC3 | ||||
Heil Sound™ | RC22 | |||
RC35 | ||||
Telefunken | M80WH | |||
M81WH | ||||
Lectrosonics | HHC | |||
HHVMC | ||||
Lewitt | W9 |
Microphone Heads | HHA-SSH | Handheld Transmitter | ||
Sennheiser SK2000 comp. | Shure comp. | |||
Neumann® | KK205 * | Shure® | AD2 ** | |
KK204 * | ADX2 | |||
ADX2FD | ||||
Sennheiser® | MD9235 | AXT200 | ||
ME9002 * | PG2 * | |||
ME9004 * | PGX2 * | |||
ME9005 * | QLXD2 * | |||
MM435 | SLX2 * | |||
MM445 | SLXD2 * | |||
MMD42-1 | ULX2 * | |||
MMD835BK | ULXD2 * | |||
MMD845 | UR2 * | |||
MMD935 | ||||
MMD945 | Sony® | DWZ-M * | ||
MME865 | DWM-02 | |||
MMK965 *, ** |
UTX-M40 | |||
Lectrosonics® | HH | |||
Dhu | ||||
* Shure PG2, PGX2, QLXD2, SLX2, SLXD2, UR2, ULX2, ULXD2 and Sony DWZ-M handhelds cannot work with Neumann KK204, KK205 and Sennheiser MMK965, ME9002, ME9004, ME9005 capsules. ** The Shure AD2 handheld does not work with the Sennheiser MMK965 capsule. |

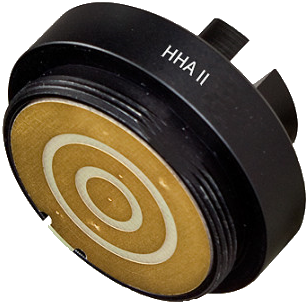

Microphone Heads | HHA II | Handheld Transmitter | ||
Sennheiser SK5000 comp. | Lectrosonics comp. | |||
Neumann® | KK104S | Lectrosonics® | HH | |
KK105-HD | DHu | |||
KK105S | ||||
Sennheiser® | MD5235 | |||
ME5002 | ||||
ME5004 | ||||
ME5005 | ||||
ME5005-E | ||||
ME5009 |

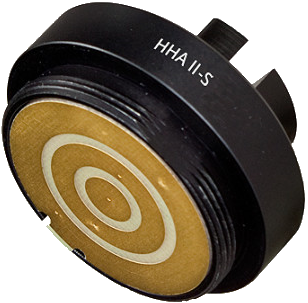

Microphone Heads | HHA II-S | Handheld Transmitter | ||
Sennheiser SK5000 comp. | Shure comp. | |||
Neumann® | KK104S | Sony® | DWZ-M | |
KK105-HD | DWM-02 | |||
KK105S | UTX-M40 | |||
Sennheiser® | MD5235 | Shure® | AD2 | |
ME5002 | ADX2 | |||
ME5004 | ADX2FD | |||
ME5005 * | AXT200 | |||
ME5005-E * | PG2 | |||
ME5009 | PGX2 | |||
QLXD2 | ||||
SLX2 | ||||
SLXD2 | ||||
ULX2 | ||||
ULXD2 | ||||
UR2 * | ||||
Electro-Voice® | HHT | |||
* The Shure UR2 handheld does not work with the Sennheiser ME5005/ME5005-E capsules. |
Microphone Heads | HHA-SS | Handheld Transmitter | ||
Sennheiser SK5000 comp. | Sennheiser SK2000 comp. | |||
Neumann® | KK104S | Sennheiser® | SKM2000 | |
KK105-HD | SKM100 G3/G4 | |||
KK105S | SKM300 G3/G4 | |||
SKM500 G3/G4 | ||||
Sennheiser® | MD5235 | SKM6000 | ||
ME5002 | SKM9000 | |||
ME5004 | SKM(-S) D1 | |||
ME5005 | EW-D SKM-S | |||
ME5005-E | EW-DX SKM-S | |||
ME5009 |
