In this guide we’ll show how to make a Tascam FR-AV2 accept external timecode.
Turn on all your Lockit devices, choose one of them to be the Master Clock – then press-and-hold the green button to broadcast timecode and frame rate through ACN and you are set.
Make sure all devices and Lockits run on the same frame rate.
- On the Lockit, press green and red simultaneously to enter menu, then and navigate to “Project Rate”. For the NanoLockit, use the LockitToolbox to adjust the frame rate or jam it from another Lockit with the correct frame rate.
- On the Tascam recorder, no further settings are required. It will automatically detect the frame rate of the external timecode source.
How to make the FR-AV2 accept external Timecode:
- Enter Menu with "F1" in the home screen.
- Go to “Timecode”
- For "TC Gen Mode" select “TC In Master”

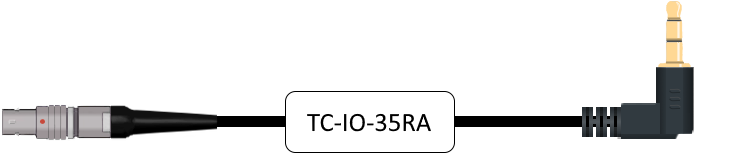

For this recorder you need a TC-IO-35RA timceode cable.
| 3.5mm TRS |
Shop |
Connect it to the EXT/TC IN connector located at the front/bottom side of the housing.
The recorder accepts the external timecode source and sets the internal generator accordingly. You can see the current timecode in the top of the home screen.
